Heliskid is a compact and adaptable skid unit for light vehicles, ideal for direct attack operations with a water line in remote locations. This mobile device can be transported on the ground or via air, boasting six times the water capacity of standard skid units and equipped with a high-performance motor pump.
Designed for versatility, the Heliskid can be transported by helicopter to remote sites unreachable by pickup trucks, positioning a tank for optimal firefighting efforts. The goal is to facilitate quick deployment to various locations, where it can be filled with water from a helicopter and supply water under pressure through the fire pump and hoses.

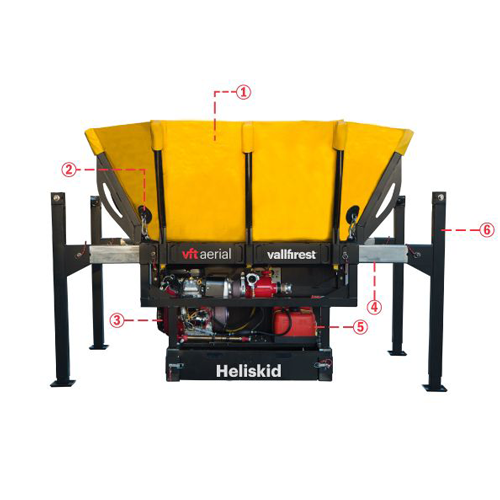

The Heliskid is made up of a foldable canvas tank with a 3,000 l capacity, 4 lifting points, a 4-stage motor pump with a 13HP, 18HP, 21HP or 23HP engine, reinforced aluminum main structure, a 12 l fuel tank, and a telescopic structure.

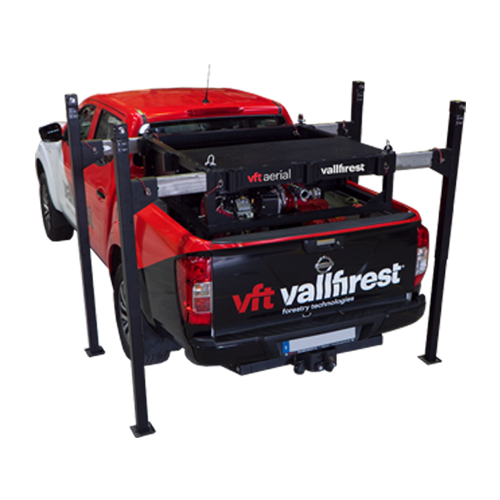

The Heliskid is compact enough to fit in any pickup truck and can tow two additional units for added efficiency. It is designed for aerial transport, moving from the vehicle unloading position to the remote area where the fire is being targeted.
The canvas tank must be deployed to allow helicopters to fill it by water discharge. The sequence of use includes Transportation, Stabilization, Filling, and Use.

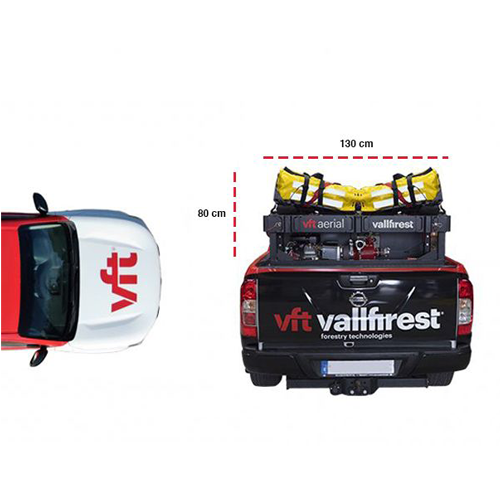

The Heliskid's dimensions are optimized for most pickups, such as the double-cab Nissan Navara, allowing it to fully utilize the truck bed for increased water tank volume.
Folding canvas and removable structure designed for easy transport.
System designed for rapid assembly and support during deployment.
Can carry 3-4 hose backpacks with a total of 240-320 m of hose.

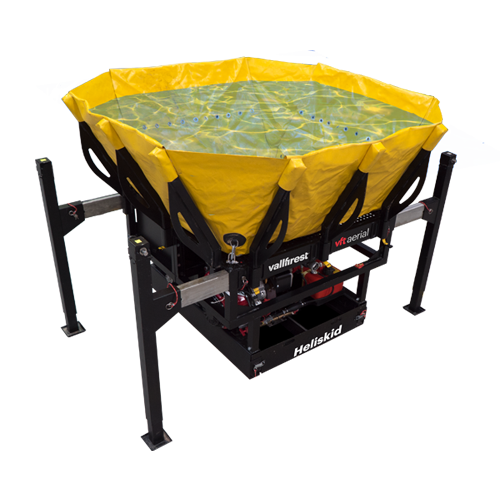

3,000 l capacity foldable canvas tank.
4-stage motor pump with multiple engine configurations (13-23HP).
12 l fuel tank.

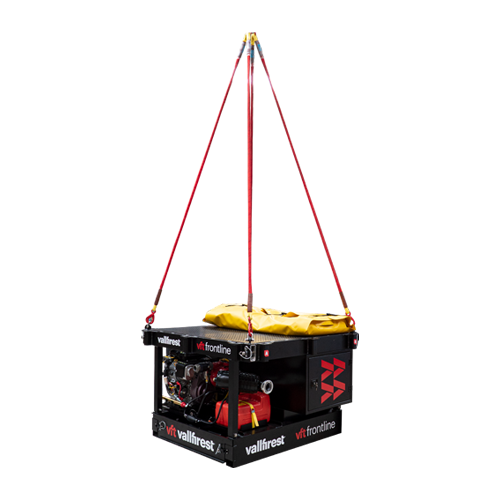

4 lifting points for transport by helicopter.
Recommended a minimum of 2 people for assembly.
415 kg without water, 3,400 kg with a full tank.
Manufactured with aluminium, fiber and Tecstar, it provides a complete thermal insulation
The Wildland Forest Firefighter Heliskid is a compact, highly adaptable skid unit designed for rapid deployment in remote locations, making it ideal for direct attack operations with water lines. This mobile firefighting unit can be transported both by ground and air, providing flexibility and quick access to critical areas. With a water capacity six times larger than standard skid units, the Heliskid ensures prolonged firefighting capabilities in challenging environments. Equipped with a high-performance motor pump, it delivers reliable pressure and flow, ensuring effective fire suppression. Its compact size allows for easy storage and transportation, while its robust construction ensures durability in tough conditions. Perfect for wildland firefighters who need a mobile, high-capacity solution, the Heliskid enhances operational efficiency and effectiveness in emergency response situations.
