Medium pressure | Up to 16 Bar High pressure skid unit with Centrifugal Pump Rapid intervention skid unit designed for pickup trucks and trailers, featuring centrifugal pumps that operate at pressures up to 14 bars and achieve a maximum flow rate of 248 liters per minute.
Custom configuration

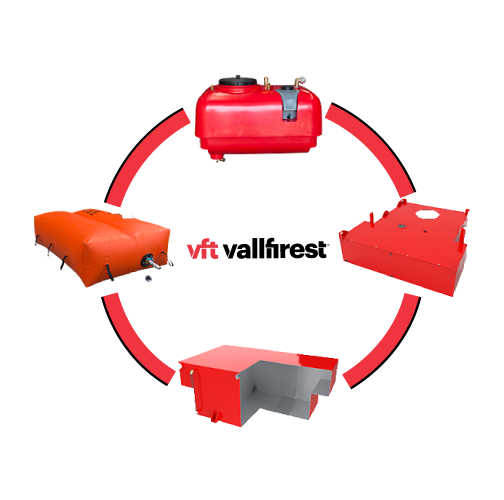

Capacities: 120 - 1,000 liters.
Multiple materials to choose from:
Stainless steel
Polyethylene.
Flexible canvas.

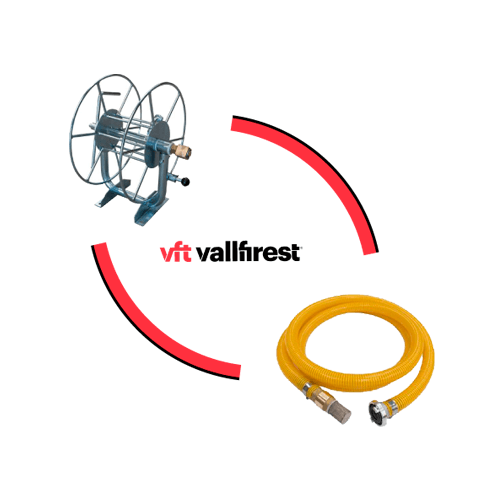

Winder mounted on the main structure. Capacity: Two 20 meter sections 20 mm in diameter.
5-meter translucent white or blue spiral absorption oversleeve. Used to suction water from anywhere and to fill the extin- guishing tank.
Hose: 3-layer hose for use in low pressure

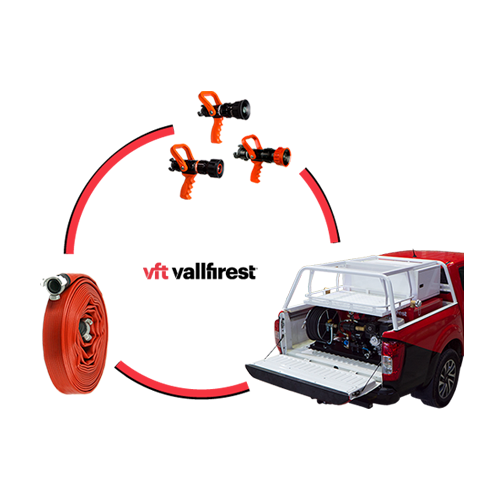

Flow regulating lance: Vallfirest flow regulating water lances.
Foam system: Compact and easy to use, mixing of foaming agent through Venturi System and proportional manual selector valve generates a stable mixture of foaming agent in water
Tool-holder structure: With the tool-holder structures we increase the operability of these vehicles by accompanying the extinguishing kits of: hand tools, drip torches, chainsaws, water packs, combat packs
High-quality components and replacement part availability.
Great availability of spare parts.
Resistant tanks made of stainless steel.
The best quality/price ratio.
2-year warranty.
| Engine | Fuel | Battery and electric start | Power | Pump | Max Pressure* | Max Flow* |
|---|---|---|---|---|---|---|
| Honda GXH50 | Gasoline | NO | 2,1 HP | VFT_1SP4 | 6,9 bar | 260 l/min |
| B&S XR2100 | Gasoline | YES | 13,5 HP | VFT_4SP | 25 bar | 390 l/min |
| Honda GX390 | Gasoline | YES | 11,7 HP | VFT_4SP | 25 bar | 390 l/min |

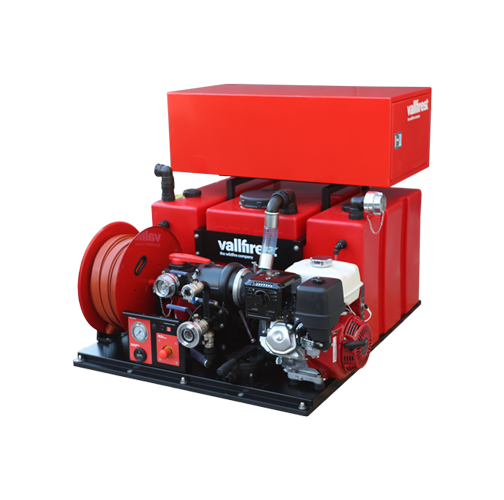

The Forest Firefighter High Pressure Skid Unit with Centrifugal Pump is designed for rapid intervention and efficient firefighting response. Operating at pressures up to 16 bars, it provides medium pressure capabilities for effective fire suppression. Equipped with a centrifugal pump, this skid unit delivers a maximum flow rate of 248 liters per minute, ensuring high water volume for large-scale fire control. It is specially designed for easy installation on pickup trucks and trailers, making it ideal for quick deployment in various fire scenarios. Compact, durable, and built for performance, the unit is ready to withstand tough conditions and deliver consistent power throughout firefighting operations. Perfect for both initial response and extended operations, this skid unit enhances firefighting effectiveness in wildland environments.
