Low- Medium - High pressure | From 8,5 up to 100 bar
Rapid intervention firefighting kits, specifically designed for pickup vehicles and trailers, fully
customizable and equipped with centrifugal, diaphragm, and piston pumps.
Capacity: 400 - 700 L

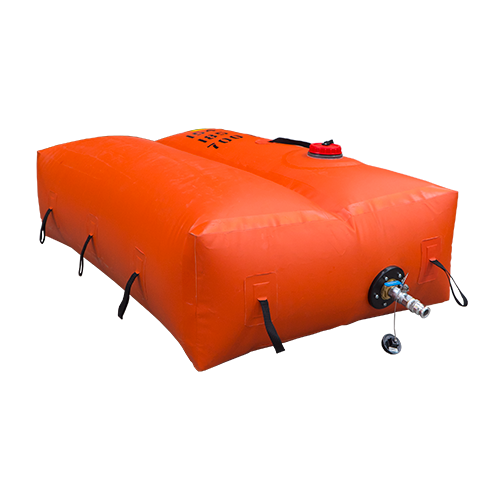

Constructed from high-strength polyester fabric, coated with PVC and lacquered on both sides, with a weight of 1050 g/m².
The tank features a suction port on the front plane and a fill port on the upper plane.
It is securely anchored to the pickup vehicle's bed using multiple anchor points, ensuring a stable and firm attachment.

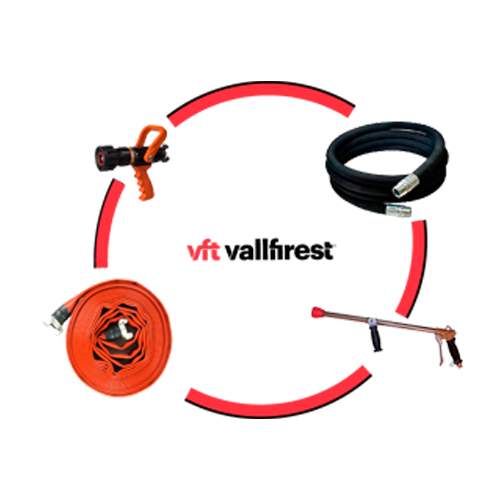

Hose: A three-layer hose designed for low-pressure use, made from circular fabric with 100% high-tenacity thread, fully protected by a synthetic rubber layer for a seamless, durable construction.
Flow Regulating Lance: SG540 VFT forestry lance with four selectable flow rates. Compatible with foam proportioners and CEPS. Built for high performance in extreme conditions, easy to maintain, and durable. Features a cleaning position.
Hose: SAE 100 R1AT model high-pressure hose.
Water Lance: High-pressure, long-range lance with a variable jet (concentrated, cone/spread).
High-quality components and replacement part availability.
Great availability of spare parts.
Resistant tanks made of PVC.
The best quality/price ratio.
2-year warranty.
| Engine | Power | Pump | Max Pressure* | Max Flow* |
|---|---|---|---|---|
| B&S XR950 | 6,5 HP | 2RD 30/6 | 8,5 bar | 240 l/min. |
| Engine | Power | Pump | Max Pressure* | Max Flow* |
|---|---|---|---|---|
| Honda GX160 | 4,8 HP | AR30 | 40 bar | 36 l/min. |
| Engine | Power | Pump | Max Pressure* | Max Flow* |
|---|---|---|---|---|
| Honda GX390 | 11,7 HP | XWL 42.10 N | 100 bar | 42 l/min |
| Kohler CH440 | 14 HP | XWL 42.10 N | 100 bar | 42 l/min |
| B&S XR2100 | 13,5 HP | XWL 42.10 N | 100 bar | 42 l/min |

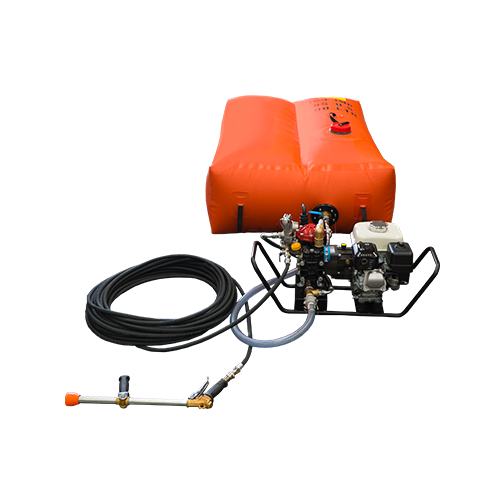

The Forest Firefighter High Pressure Skid Units with Flexible Tank are versatile firefighting kits designed for rapid intervention in wildland fire scenarios. Equipped with centrifugal, diaphragm, or piston pumps, these units operate across a range of pressures, from 8.5 to 100 bar, offering flexibility for different firefighting tasks. They are specifically designed for easy installation on pickup vehicles, trailers, and other compatible vehicles, ensuring quick mobility and deployment in emergency situations. The flexible tank design allows for compact storage and easy transport while providing a large capacity for extended firefighting operations. These units are fully customizable, allowing firefighters to tailor the system to their specific needs, whether addressing fuel, structural, or wildland fires. Built for durability and efficiency, they provide powerful water flow for effective suppression, making them an essential tool for fire crews in challenging environments.
