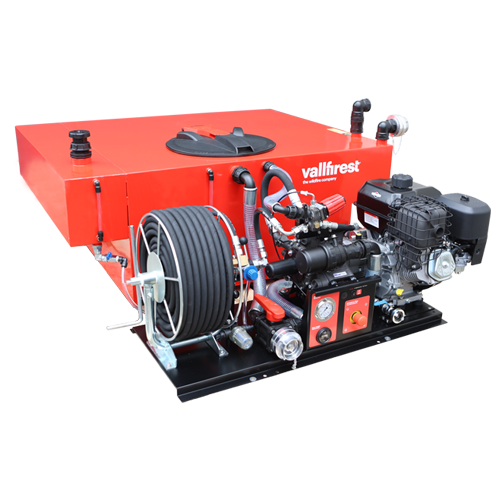

Medium - High pressure | Up to 50 Bar High pressure skid unit with Membrane Pump Rapid intervention skid unit designed for pickup trucks and trailers, featuring membrane pumps capable of operating at pressures up to 50 bars and delivering a maximum flow rate of 105 l/min.
Custom configuration

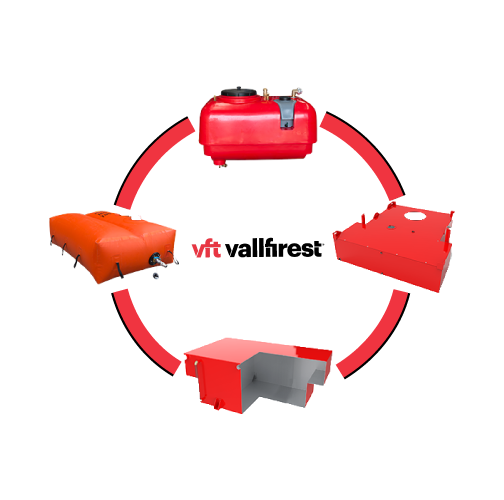

Capacities: 120 - 1,000 liters.
Multiple materials to choose from:
Stainless steel
Polyethylene.
Flexible canvas.

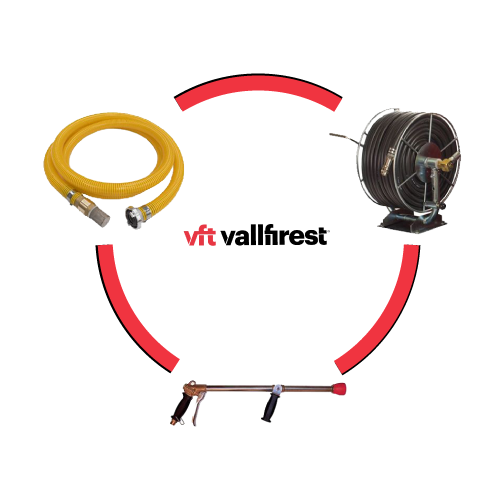

Winder, Attack Lance and Suction Sleeve
The winder is assembled with a connection to the water pump. 70 meter rubber hose up to 80 bar.
Long-range, high-pressure lance (700 mm.). It has a variable angle with Ø 4.5 nozzle. Inlet connection 1/2 ”M.
Translucent aspirated suction hose with a length of 5 meters.

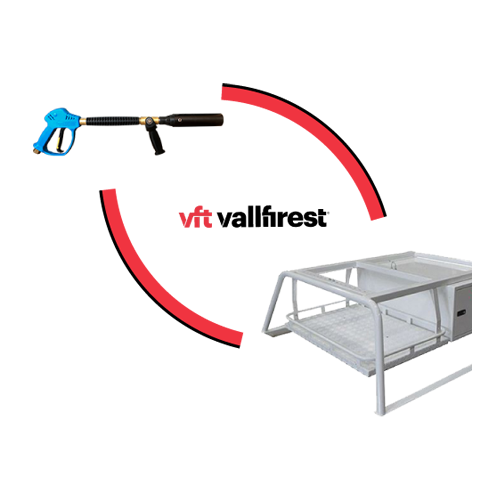

Foam system and tool holder structure
Foam system: Compact and easy to use, mixes blowing agent from 0 to 6% in high pressure, manually controllable from the control panel.
Tool-holder structure: With the tool-holder structures, we increase the operability of these vehicles by accompanying the extinguishing kits of: hand tools, drip torches, chainsaws, water packs, EPIS, etc. Different possibilities fully customizable.
High-quality components and replacement part availability.
Great availability of spare parts.
Resistant tanks made of stainless steel.
The best quality/price ratio.
2-year warranty.
| Engine | Fuel | Battery and electric start |
Power | Pump | Maximum Pressure* | Maximum Flow* |
|---|---|---|---|---|---|---|
| B&S XR950 | Gasoline | NO | 6,5 HP | AR30 | 40 bar | 36 l/min |
| B&S XR2100 | Gasoline | YES | 13,5 HP | AR813 | 50 bar | 80 l/min |
| Lombardini 15LD440 | Diesel | YES | 11 HP | AR813 | 50 bar | 80 l/min |
The Forest Firefighter High Pressure Skid Unit with Membrane Pump is a high-performance rapid intervention system designed for quick deployment in emergency firefighting situations. With a medium to high pressure range, it operates efficiently at pressures up to 50 bars, providing robust firefighting capabilities. Equipped with a membrane pump, this skid unit delivers a maximum flow rate of 105 l/min, ensuring powerful water delivery for effective fire suppression. Specifically designed for easy installation on pickup trucks and trailers, it offers mobility and versatility, allowing rapid response to wildfires in various terrains. The unit is compact and durable, built to withstand tough conditions while ensuring reliability in critical fire control operations. Ideal for both initial attack and prolonged firefighting efforts, this skid unit enhances the capability of firefighters on the front lines.
