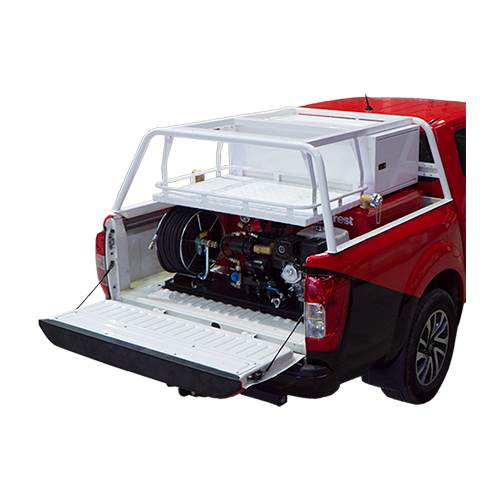

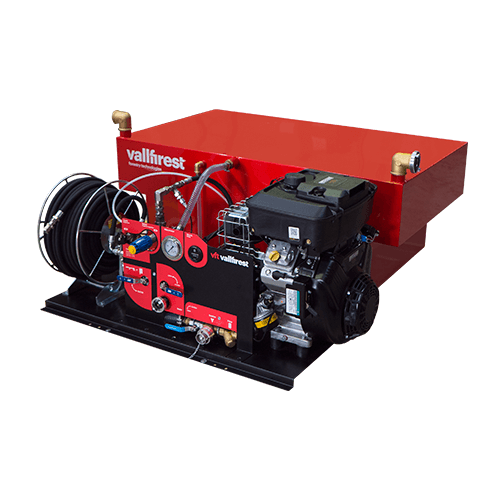

High pressure | Up to 100 Bar High pressure skid unit with Piston Pump Rapid intervention skid unit designed for pickup trucks and trailers, fully customizable and equipped with piston pumps that operate at pressures up to 100 bars, delivering a maximum flow rate of 42 liters per minute.

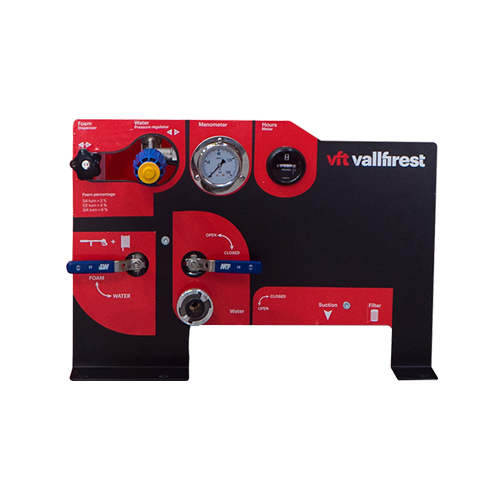

The kit features a complete painted aluminum panel with all the controls and valves, including the foam control system, a time counter and a pressure gauge.
Custom configuration

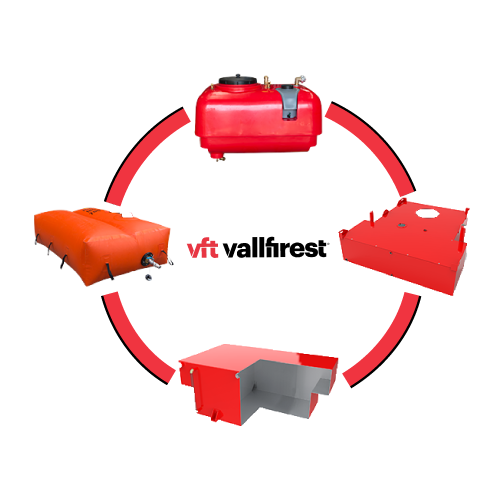

Capacities: 120 - 1,000 liters.
Multiple materials to choose from:
Stainless steel
Polyethylene.
Flexible canvas.
Hose: 3-layer hose for use in low pressure
Flow regulating lance: Vallfirest flow regulating water lances.
Foam system: Compact and easy to use, mixing of foaming agent through Venturi System and proportional manual selector valve generates a stable mixture of foaming agent in water
Tool-holder structure: With the tool-holder structures we increase the operability of these vehicles by accompanying the extinguishing kits of: hand tools, drip torches, chainsaws, water packs, combat packs

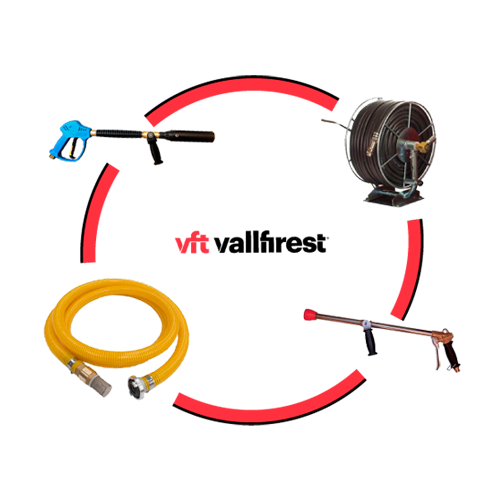

Reel, hose, foam system, attack lance, suction hose
Fast Attack Winder: Winder assembled on the main structure. Includes 50 m hose. DN10 or DN12 (depending on the motor pump model) made of rubber up to 330 bar. The winder comes assembled with connection to the water pump.
Attack lance: long-range, high-pressure lance. Maximum flow: 45 l / min. Maximum pressure: 280 bar.
Foam system with lance: Foam PVB AV785 lance. Maximum flow: 50 l / min.
Suction hose: translucent yellow spiral hose with a length of 5 m. Includes non-return foot valve and filter.
Tool carrying structure for Skid Units
With the tool holder structures, we increase the operability of these vehicles by accompanying the extinguishing kits of: hand tools, drip torches, chainsaws, water packs, Epis, etc. Different possibilities fully customizable.
High-quality components and replacement part availability.
Great availability of spare parts.
Resistant tanks made of stainless steel.
The best quality/price ratio.
2-year warranty.
| Engine | Fuel | Battery and electric start |
Power | Pump | Max Pressure* | Max Flow* |
|---|---|---|---|---|---|---|
| B&S XR2100 | Gasoline | YES | 13,5 HP | XWL 42.10 N | 100 bar | 42 l/min |
| B&S XR2100 | Gasoline | YES | 13,5 HP | XW 21.20 N | 200 bar | 21 l/min |
The Forest Firefighter High Pressure Skid Unit with Piston Pump is designed for high-pressure firefighting operations, capable of operating at pressures up to 100 bars. This powerful unit is equipped with a piston pump, ensuring efficient and consistent water delivery, with a maximum flow rate of 42 liters per minute for targeted and precise fire suppression. Fully customizable, this skid unit is engineered for easy installation on pickup trucks and trailers, providing flexibility for a range of firefighting needs. The high-pressure system is ideal for tackling tough fires, creating firebreaks, or dealing with wildfires in areas with limited water supply. Durable and built to perform under extreme conditions, it is perfect for rapid intervention in critical firefighting situations. The skid unit’s compact design ensures easy transport and quick deployment in remote areas, enhancing response time and overall effectiveness in the field.
